Services We Offer

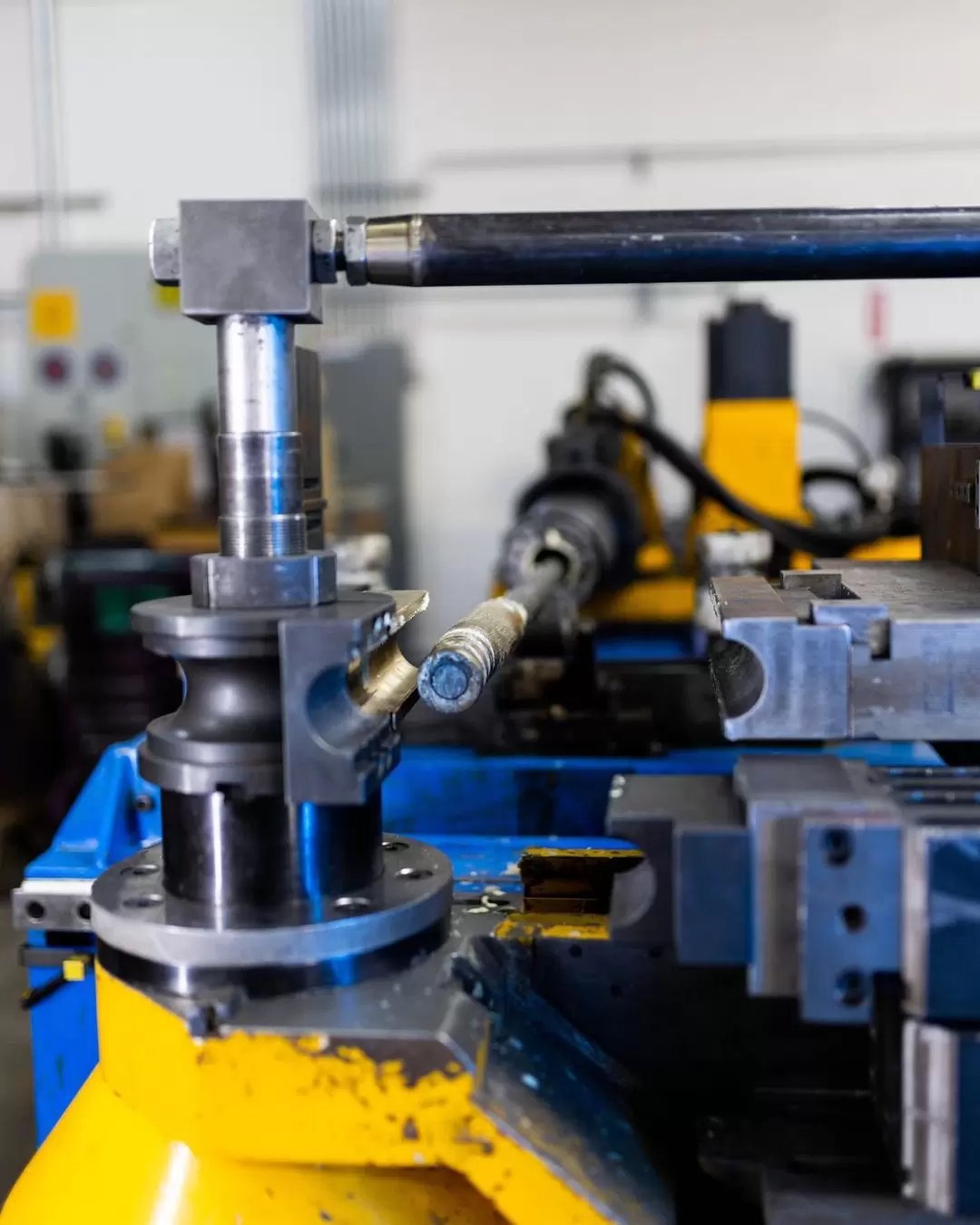

CNC Tube Bending
We can bend your tubing designs from CAD drawings on our CNC tube bender saving you time and labor. If you do not have a design yet, we can help you by creating the CAD drawings from your physical sample part. Weather it be an exhaust tube, machine part or structural part we can help you get it done.
| PPE Engineering Bender Die List | |||
| Diameter | Center Line Radius | Grip Length | Grip Length 2 |
| 0.50″ OD | 1.00″ CLR | 1.60″ | |
| 0.625″ OD | 1.00″ CLR | 1.60″ | |
| 0.75″ OD | |||
| 1.00″ OD | 2.00″ CLR | 3.00″ | |
| 1.25″ OD | 2.5″ CLR | 2.60″ | |
| 1.375″ OD | 2.75″ CLR | 2.60″ | |
| 1.50″ OD | 2.50″ CLR | 3.00″ | |
| 1.50″ OD | 5.00″ CLR | 4.00″ | |
| 1.625″ OD | 2.5″ CLR | 3.25″ | |
| PPE Engineering Bender Die List | |||
| Diameter | Center Line Radius | Grip Length | Grip Length 2 |
| 1.750″ OD | 2.5″ CLR | 3.50″ | 2.70″ |
| 1.75″ OD | 1.75″ CLR | 6.00″ | |
| 1.875″ OD | 3.00″ CLR | 3.80″ | |
| 2.00″ OD | 3.00″ CLR | 3.90″ | |
| 2.25″ OD | 3.50″ CLR | 5.00″ | |
| 2.50″ OD | 4.00″ CLR | 5.60″ | |
| 2.50″ OD | 2.50″ CLR | 6.00″ | |
| 3.00″ OD | 4.50″ CLR | 6.80″ | |
3D Scanning
Let us help you get your design done quicker and more accurately. With our Einscan Pro HD scanner we can scan your part or work area and send you the file for you to use in designing your part.
We can also use our scanner to design a full part for you with greater accurancy and speed.
What We Do
Automotive / Aerospace / Military / Commercial

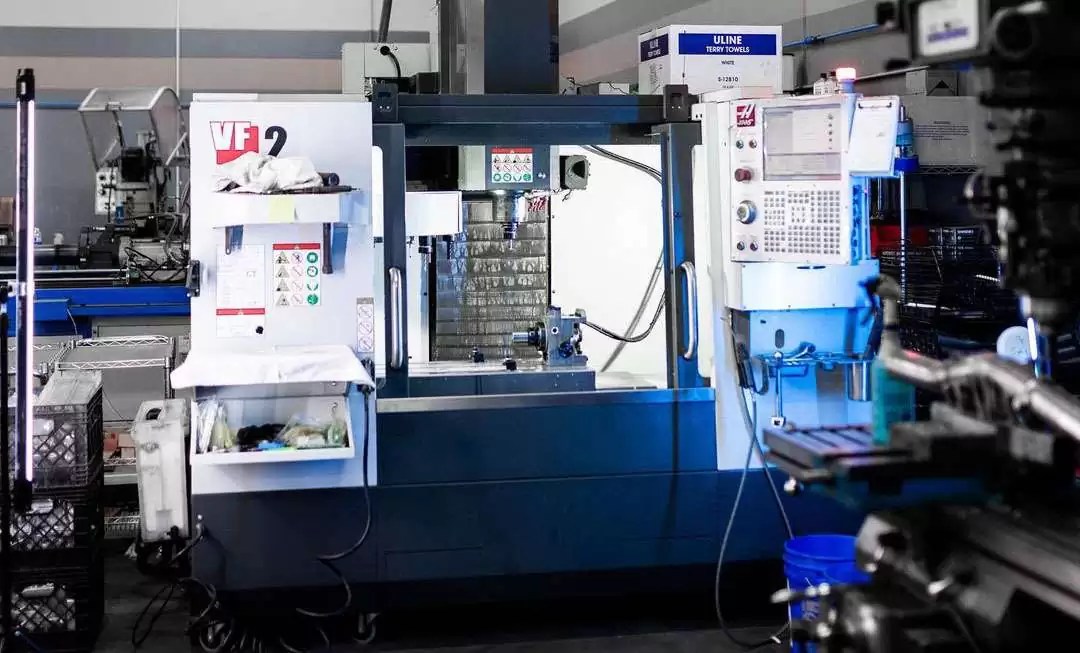

We can help you produce the products you need and can not or do not want to make yourself. We can help with CAD design, Prototyping and production. We specialize in tubular products but also are experienced with CNC machining metals and plastics, TIG and MIG welding, powder and ceramic coating, assembly and packaging.
We can CNC mandrel bend tube from ½” to 3” OD, 18 gauge to Schedule 40 pipe. We have tube end forming capabilities and can CNC mill custom tooling to create the parts you need.
From 1 part to 10,000+, let us quote your next project.
Send us a drawing or email us for a quote.
